Learn about our Rolling Door Installation Cradle
-

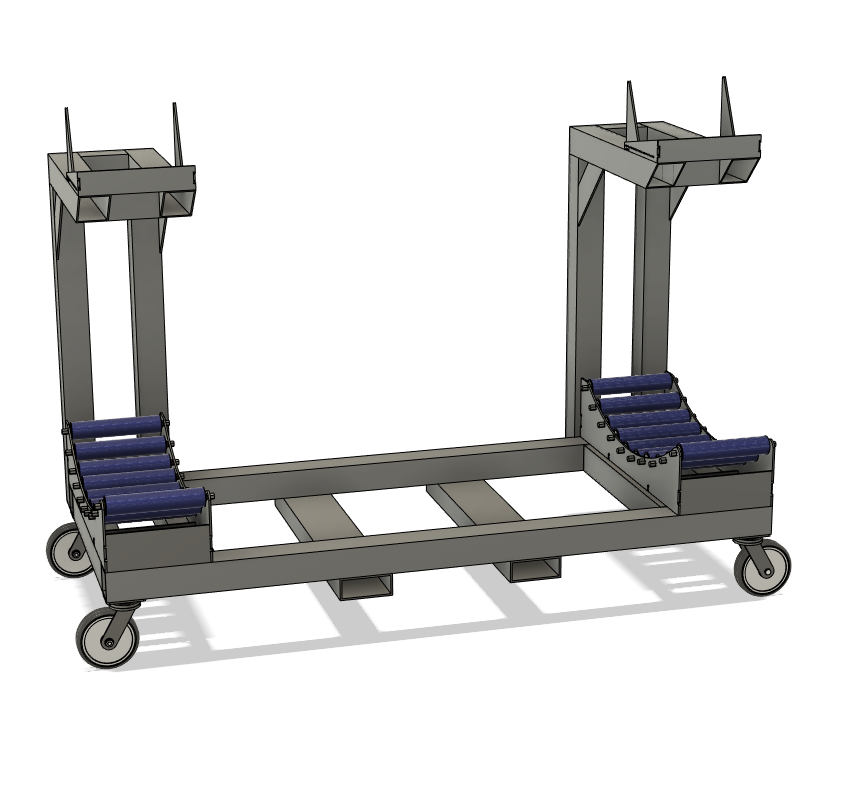

The Rolling Door Installation Cradle is a forklift attachment designed to improve the safety and efficiency for the rolling door installation industry. The device provides the ability to assemble the curtain and shaft safely on the ground. Then bringing the entire unit over head in one piece. The Cradle also provides mechanical advantage for low ceiling installations. Eliminating the need to remove forklift masts for shallow ceiling installs.
-
Length – 90 inches
Width –42 inches
Height – 70 inches
Curtain Capacity- 3000 lbs
Shaft Capacity – 2500 lbs
Max Capacity – 5500 lbs
Assembly – Fully Tig Welded Frame
Construction – Carbon Steel
Usable Curtain Width – 8-20 ft
Curtain Roller type – PVC Covered Steel Bearing
Max Barrel Diameter – 12 inches
Max Curtain Diameter – 30 inches
Unit Weight – 1000lbs
Wheel Diameter – 8” diameter
Wheel Type – Polyurethane Kingston Caster (1200lbs cap each)
-
Made to Order
Current lead times: 3-4 weeks
-
Color of the Cradle may be customized per customer request.
